Bench Drill
Very high quality, robust and durable bench mounted drilling machine.
This workshop drilling machine is well engineered throughout.
Suitable for trade, education or home workshop applications.
Robust, trouble free, straight forward design.
Features include
- Start / stop switch incorporates emergency stop
- Fitted with rotary / tilting table
- Positive quill depth stop
- Isolator switch fitted to belt cover
- Tee slotted tables fitted
- Complete with integrated work light
Full Specification
|
|
|
Product Dimensions:
|
|
|
Weight
|
73kg
|
|
Width x Depth x Height
|
375 x 650 x 1015mm
|
|
Base Width x depth
|
270 x 460mm
|
|
Shipping Dimensions
|
|
|
Length x Width x Height
|
930 x 580 x 360mm
|
|
Package Type (Pallet or box)
|
Box
|
|
Power/Motor
|
|
|
Motor size
|
650W
|
|
Drive (GH) gearbox (VS) variable speed or (B) Belt
|
Belt
|
|
Voltage (240v single) (440v 3 Phase)
|
240v Single
|
|
Fitment (Plug connection type)
|
3 pin plug
|
|
Spindle Bearing type
|
Sealed Roller Bearing
|
|
Spindle speeds (No: and achievable speeds)
|
16 speed 120-220-270-320-400-450-500-820-950-970-1260-1380-1680-1820-2580-3000
|
|
Main Specifications
|
|
|
Type (Bench top or floor)
|
Bench Top
|
|
Table size (Length x Width x Thickness)
|
300 x 305 x 30mm
|
|
Table Travel Vertical
|
440mm
|
|
Maximum size spindle to Table
|
450mm
|
|
Maximum size spindle to Base
|
620mm
|
|
Throat (Spindle middle to Column face)
|
180mm
|
|
Column diameter
|
80mm
|
|
Spindle Taper size
|
2MT
|
|
Head tilt left to right
|
n/a
|
|
Table tilt
|
90-90° (45-45° calibrated)
|
|
Drill chuck capacity and recommended max drill
|
16mm / 20mm max
|
|
Quill diameter
|
52mm
|
|
Quill/Spindle stroke
|
85mm
|
|
Features
|
|
|
Laser centre?
|
X
|
|
Work light?
|
Y
|
|
Digital speed counter?
|
X
|
|
Depth stop?
|
Y
|
|
Safety interlock guard?
|
X
|
|
Other Specifications
|
|
|
Country of origin
|
China
|
|
Warranty
|
12 Months
|
|
Approximated assembly and setup time
|
30 mins
|
|
CE approved Certificate
|
CERT-20210823 TA 385213770(1)
|
|

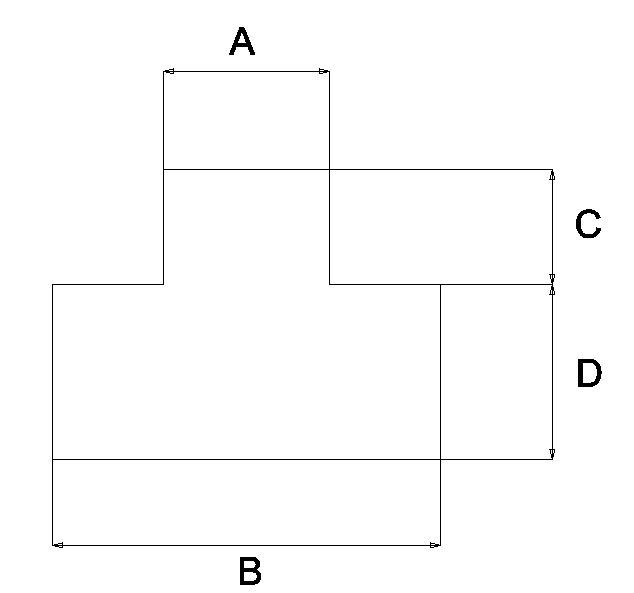

Tee slot size and no of slots (A-B-C-D) no: of slots
|
A=18 B=30 C=5 D=18m 4 slots
|
