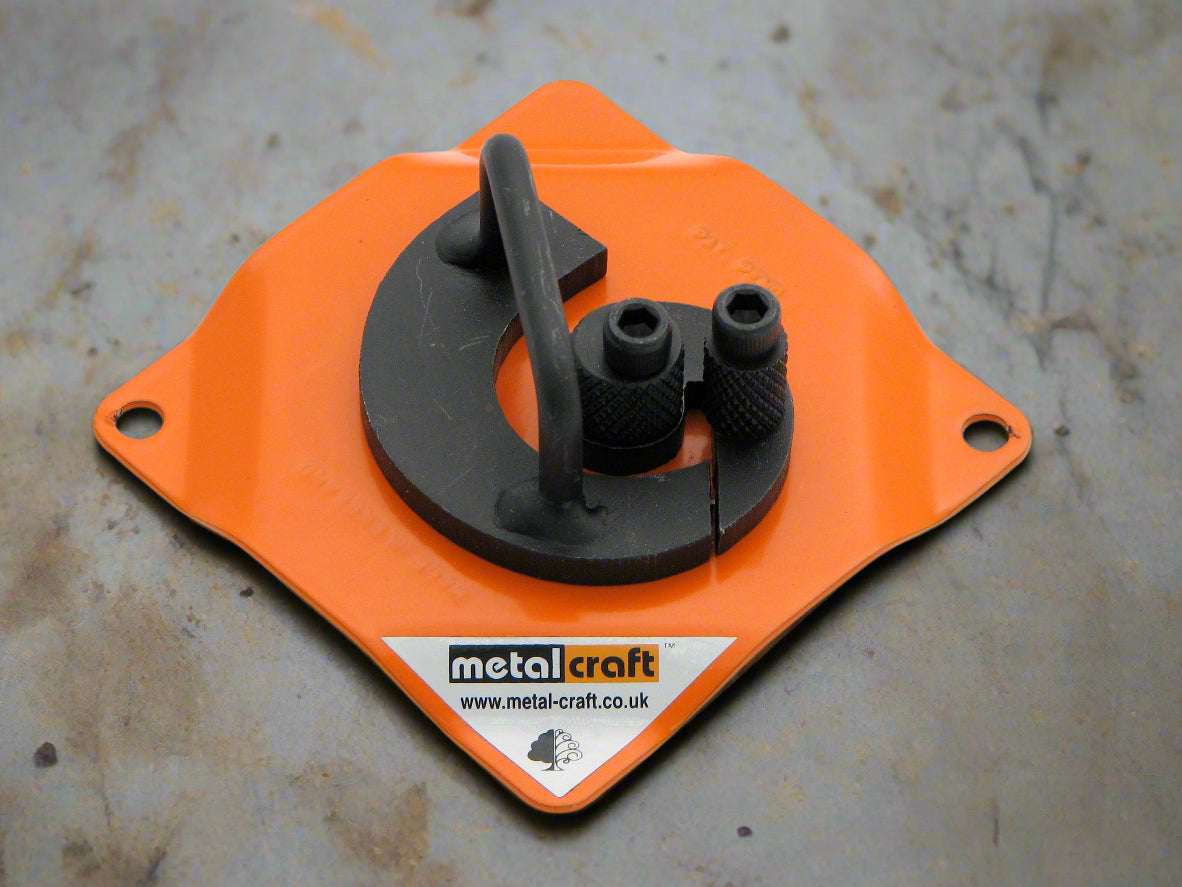

Mk 1/2 Scroll Former


Product Code: MC017

The Mk 1/2 Scroll Former is the smallest in our range of scroll bending tools. It produces consistent small ornamental scrolls up to 76mm across using smaller material up to 13mm x 2mm. It works as a hand drawn scroll bender by gripping the steel bar in the centre and you then draw the steel around inner it’s central segment to create the initial part of the scroll and you then drop in the outer segment to make the scroll bigger if you wish.

By using a marker to use the point at which you stop, you can make repeated identical scrolls.

Dimensions: 100mm W x 100mm D x 45mm H

Max working Capacity*

13mm x 2mm

Max scroll size*

3" (76mm)

* All sizes are approximate and in mm unless stated otherwise

The maximum scroll size quoted is approximate due to the varying temper (spring) of steel.

All our scroll former tools on this page are supplied complete with operating instructions, spare parts diagram, scroll former template sheets and magnetic markers for repeatable scrolls.

Please note: The maximum working capacity is for Hot Rolled Mild Steel Bar and Annealed Bright Mild Steel Bar.  Working beyond these limits or with material of greater hardness may reduce the operational life of the machines.

Operations and Features
  • Easy to use
  • Produces flat and consistent scrolls
  • No pre-heating of metal required
  • Ideal entry level (low cost) scroll formers
  • Ensure you have ample work space around the tool to wrap longer lengths

Grip steel in centre of scroll former and by hand pull around the inner fixed segment to make a smaller scroll.

Drop-in outer segment to make a larger scroll.
