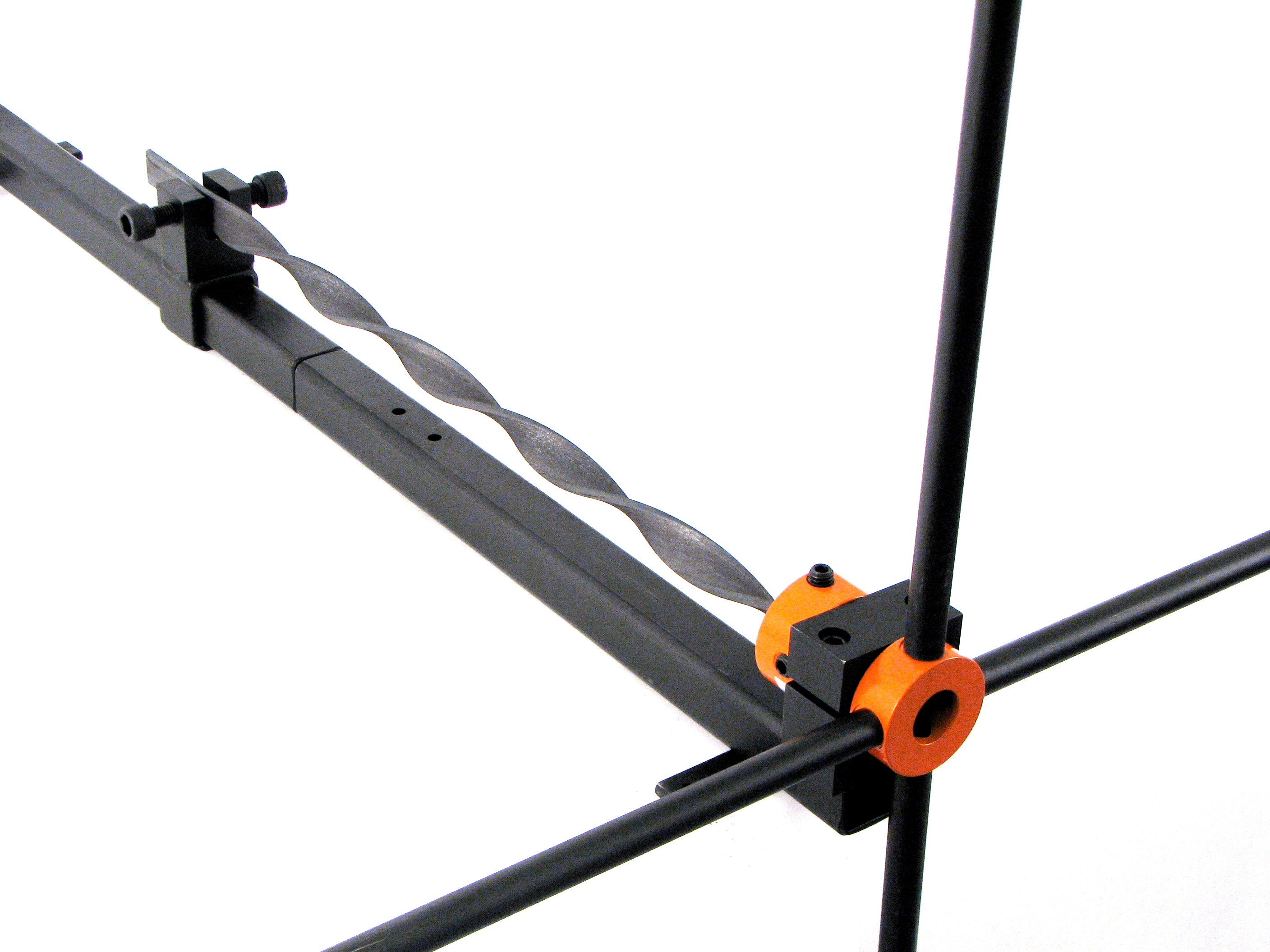

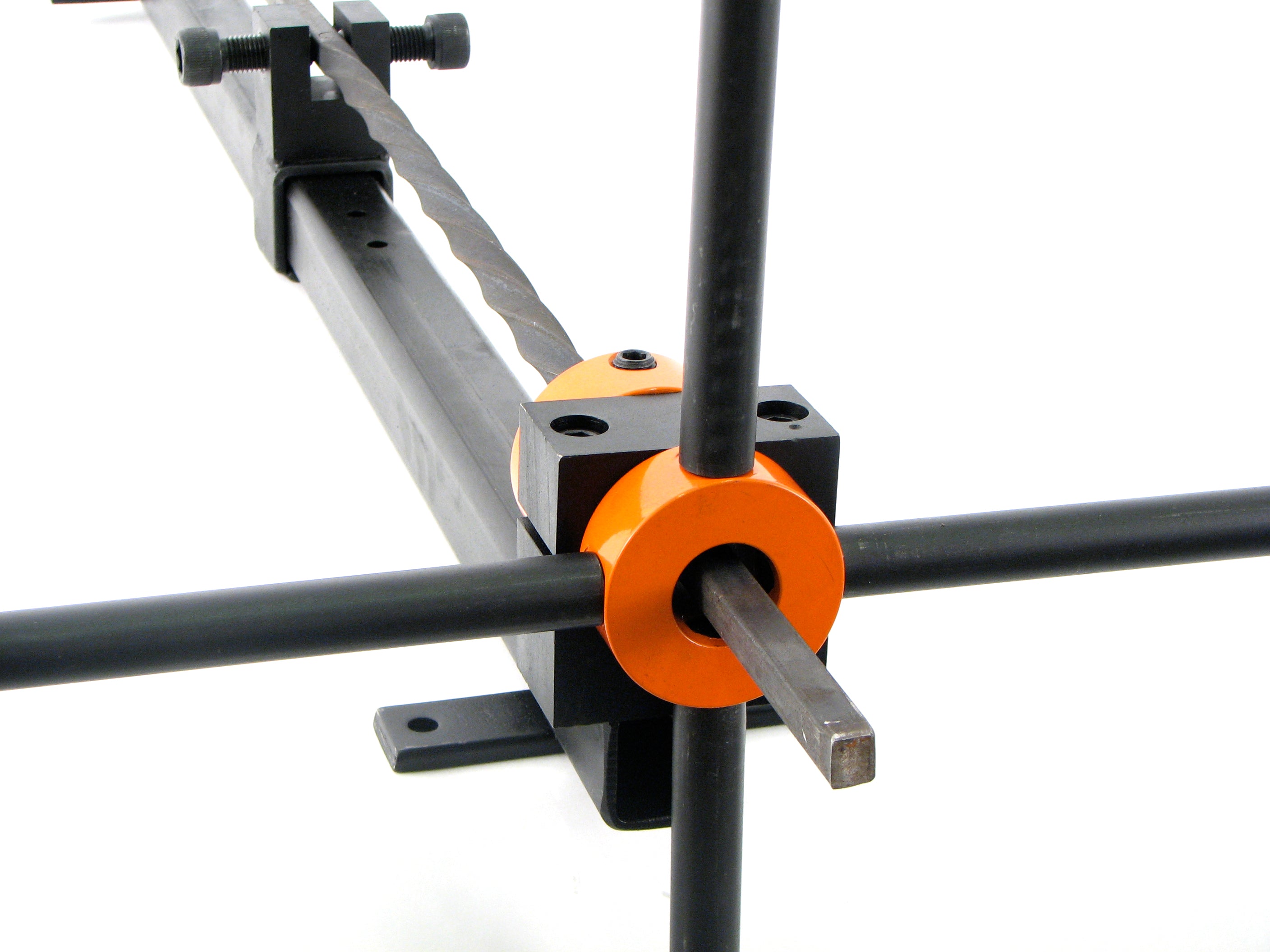

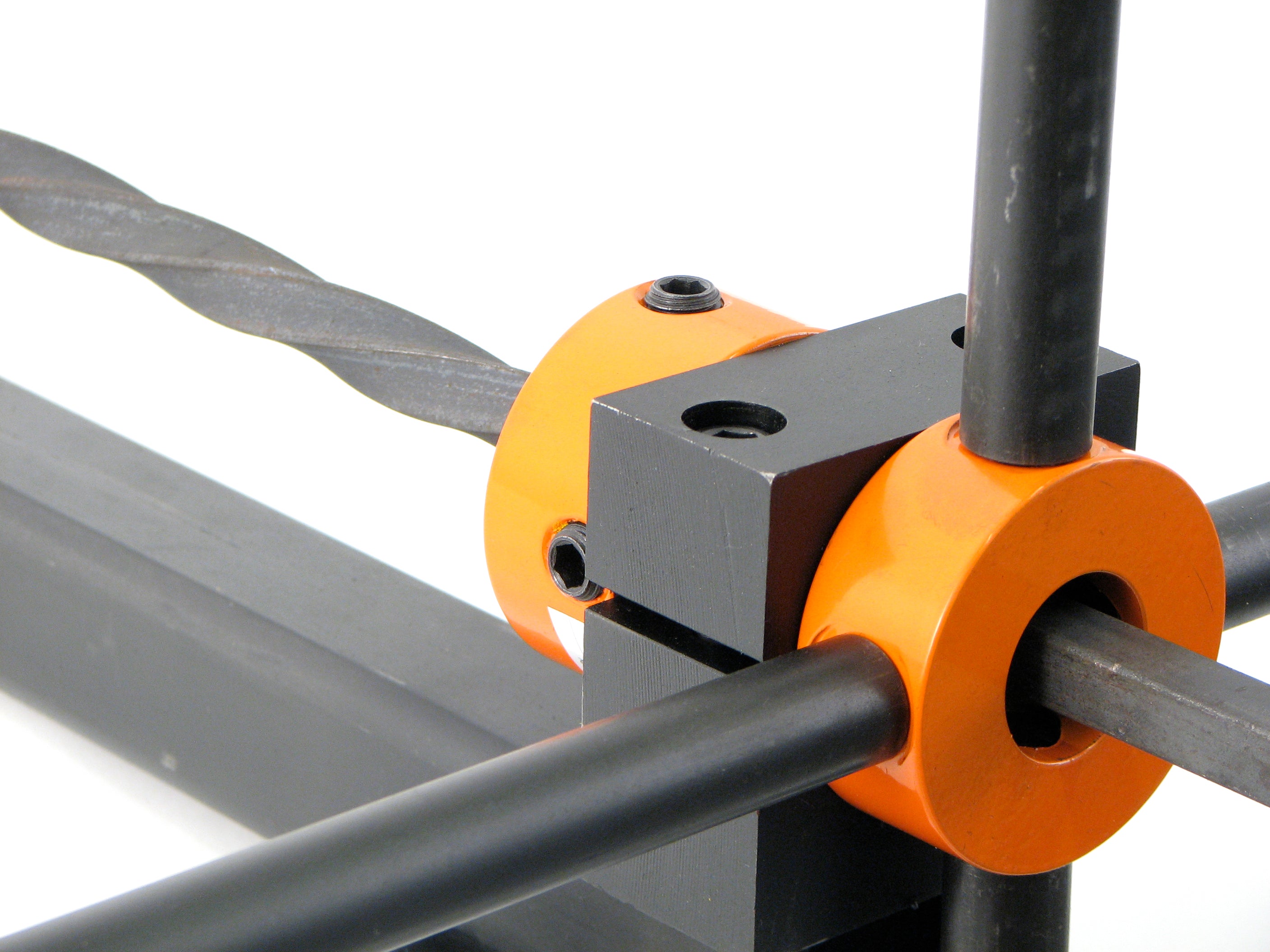

The mid-range MC027X Master Twister is an ingenious metal twisting machine that enables you to add that subtle twist to your ornamental wrought ironwork. Thanks to the clever clamp and sliding carriage arrangement it guarantees consistent and even spaced twists in flat and square bars making it an invaluable steel picket twister for those struggling to make decorative twisted wrought iron bars particularly for fencing, gates and ballustrades.

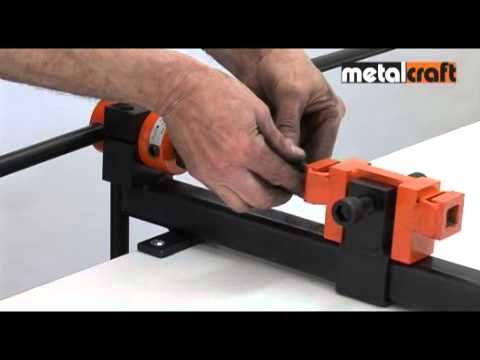

This highly effective wrought iron twisting machine is also supplied with additional components to grip the ends of clusters of welded bars that can be twisted into rope bar but then when the bar is twisted back in the opposite direction a slender decorative basket is formed as shown in the video clip here.
Dimensions: 140mm W x 1090mm L x 140mm H x 740mm Handle Length
Max Working Capacity*
25mm x 10mm (flat strip)
16mm (square bar)
Min 1.8" (45mm)
Max 38.6" (980mm)
Produces slender decorative baskets to fit 12mm and 16mm bars.
16mm (4 x 8mm x 8mm) - Basket length 165mm
12mm (4 x 6mm x 6mm) - Basket length 125mm
*All sizes are approximate and in mm unless stated otherwise
**Longer Twists can be achieved with care by moving twisted sections through the machine and then twisting the next section”
Tools are supplied complete with operating instructions and spare parts lists.
Please note: The maximum working capacity stated is for Hot Rolled Mild Steel Bar and Annealed Bright Mild Steel Bar. Working beyond these limits or with material of greater hardness may reduce the operational life of the machines.
Operations and Features
- Increases the capability of the MC027 Master Twister
- Easy to fit
- Easy To Use and produces sleek looking baskets as features for many projects

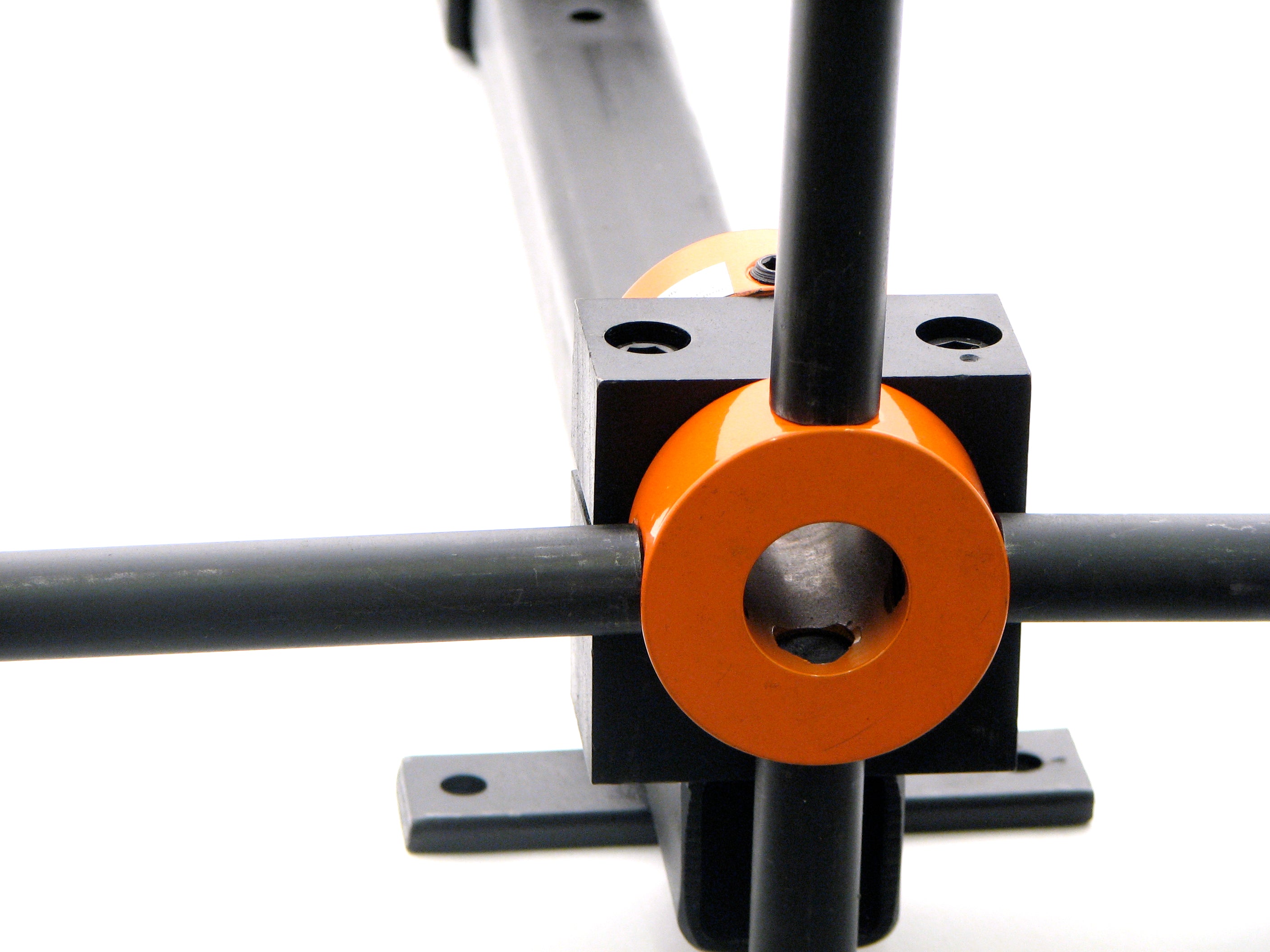

Tool still operates as the MC027 Master Twister but fitted with these special collars for holding and forming baskets out of pre-welded square or round bar clusters (two sizes).
By twisting the cluster in one direction and then back the other way, cluster opens out into a slender basket.
